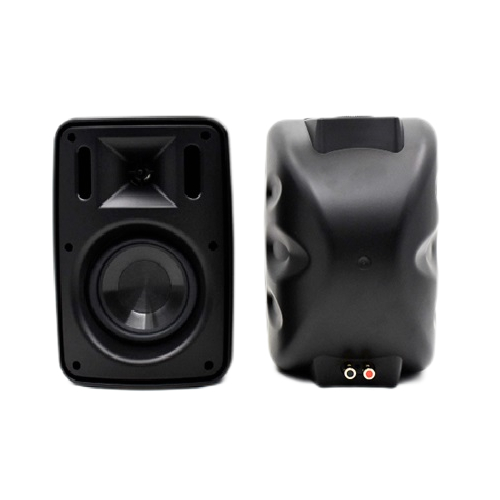

WMS-C5 WMS-C6 WMS-C8
8518220000
| Specification | WMS-C5 | WMS-C6 | WMS-C8 |
| Tweeter : HF Unit | 1" inch x 1 | 1" inch x 1 | 1" inch x 1 |
| Material: Titanium soft dome | |||
| Woofer : LF Unit | 5.25″ inch x 1 | 6.5″ inch x 1 | 8" inch x1 |
| Material: Graphite Cone, Rubber Surround | |||
| Impedance(AC) : | 8Ω | ||
| Sensitivity( Output SPL) | 86±3dB | 86±3dB | 87±3dB |
| Frequency Range+/-3 (Freq.Range) | 65~20KHz±3dB | 55~20KHz±3dB | 35~20KHz±3dB |
| Power Handling RMS (Rated Input power) | 50W program,25W(IEEE 219 ) | 60W program,30W(IEEE 219 ) | 80W program,40W(IEEE 219 ) |
| Termination : | Standard pressed connector | ||
| Taps(Transformer power) : | NA | ||
| Dimension(H*W) | 275*190*180mm | 315*218*205mm | 415*290*270mm |
| Net Weight | 3.25kg | 4kg | 7.22kg |
| Housing Material | PP | ||
