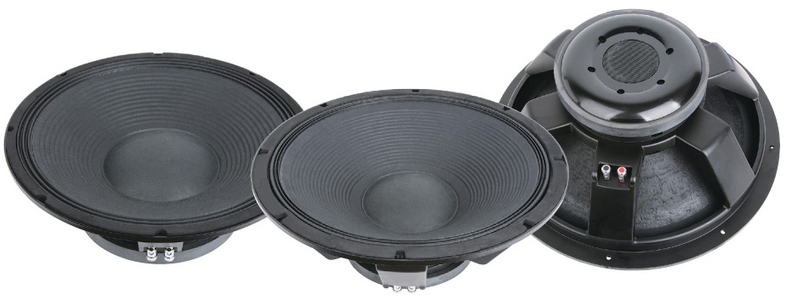

WF1506 WF1806 Woofer Loudspeaker

High quality LoudSpeaker 15inch and 18inch.
Availability:
Quantity:
  • WF1506 WF1806
  • 8518900090
Model No.WF1506WF1806
Nominal Diameter388/15 mm/inch475/18 mm/inch
Rated Impedance8ohm8 ohm
Max Power1000 watts1200 watts
RMS Power500 watts600 watts
Sensitivity98 dB98 dB
Frequency Range45-2000 Hz40-42000 Hz
Effective Piston Diameter343/13.5 mm/inch405/16 mm/inch
Minimum Impedance5.5 ohm5.5 ohm
Voice Coil Diameter99.2/4 mm/inch99.2/4 mm/inch
Voice Coil MaterialCopperCopper
Voice Coil Winding Depth24/1.0 mm/inch24/1.0 mm/inch
Number of layers22
Kind of layeroutsideoutside
Top Plate Thickness14/0.55 mm/inch14/0.55 mm/inch
Cone Materialno pressed pulpno pressed pul
Cone Designstraightstraight
Surround Materialpolycottonpolycotton
Surround Designtriple rolltriple roll
