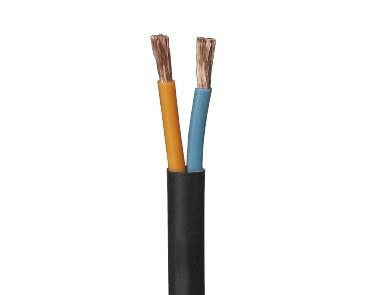

Speaker Cable - SPB2 series

Introduction：

SPB2
These cables are high quality and flexible double insulated loudspeaker cables. They are suitable for using in indoor as well as outdoor applications.
Each conductors is fitted with a hight flexible jacket made of PVC which is following the ROHS requirement. These conductors are twisted.
There are 2 cords to 8 cords, and the diameter is from O.D.5.5mm to O.D.14.0mm for you to choose. These cables have been designed for
connection of loudspeakers in fixed or mobile sound systems.
Availability:
Quantity:
Inquire Add to Basket

  • SPB2 series

• Speaker cable includes 2 cores, 4 cores, 6 cores, 8 cores, etc.

• Conductor made of 99.99% OFC OR CCA.

• Insulation made of highly flexible PVC.

• Jacket made of highly elastic PVC.


Specification


Cable modelSPB2075SPB2130SPB2150SPB2200SPB2250SPB2400
Inner conductor2x0.75mm²2x1.3mm²2x1.5mm²2x2.0mm²2x2.5mm²2x4.0mm²
Isolation colourRed/Black/White/BlueRed/Black/White/BlueRed/Black/White/BlueRed/Black/White/BlueRed/Black/White/BlueRed/Black/White/Blue
conductor twistingYesYesYesYesYesYes
Outer jacketFlexible PVCFlexible PVCFlexible PVCFlexible PVCFlexible PVCFlexible PVC
Outer jacket colour8 colors are optional8 colors are optional8 colors are optional8 colors are optional8 colors are optional8 colors are optional
Outer dimensionsΦ5.5 mmΦ6.0 mmΦ7.0 mmΦ7.5 mmΦ8.0 mmΦ9.0 mm
Temperature rangemin. -20℃min. -20℃min. -20℃min. -20℃min. -20℃min. -20℃
Temperature rangemax. 70℃max. 70℃max. 70℃max. 70℃max. 70℃max. 70℃
Packaging100 m roll100 m roll100 m roll100 m roll100 m roll100 m roll
Lead resistance - 1k meter≤36 Ω≤16 Ω≤14 Ω≤10 Ω≤8 Ω≤5 Ω
