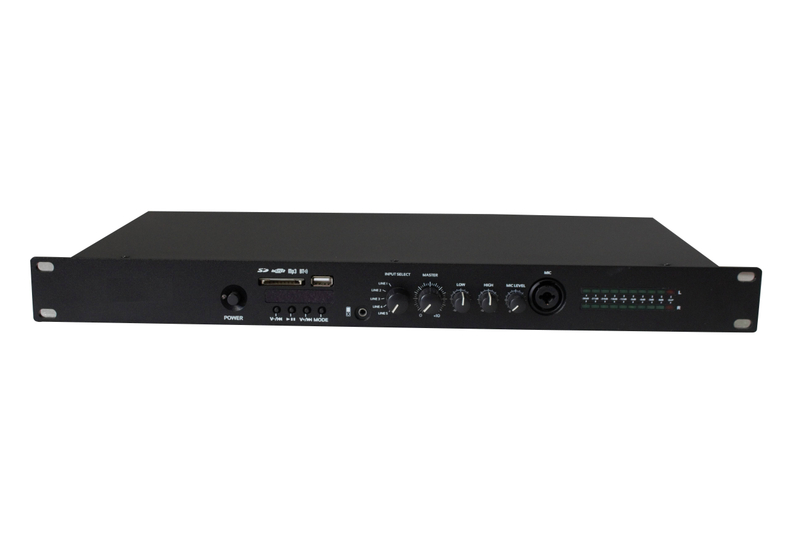

SN250 Mixing Amplifier

SN250 is a 1U size multi-purpose amplifier which can be used both for 4/8 ohm low impedance systems (2 ch stereo) and 70V/100V high impedance systems (1 ch in bridge). It is equipped with MP3 media player/Bluetooth and signal level led. It is designed for permanent or mobile installations where easy control of music is important (eg. Restaurants, gyms stores).
SN250 offers digital playback from SD cards or USB sticks.The SN250 amplifier provides full MP3 playback control, microphone input (XLR / 1/4 combo), 5 inputs (RCA/jack3.5) and the master volume control of high and low tones. Moreover, the output line (RCA) allows you to connect an additional amplifier.
Availability:
Quantity:
  • SN250

  • 8518400090

Specifications

Model
SN250
Rated power(TA 1KHz THD≤0.5%)8Ω/ stereo2×250W
4Ω/ stereo2×450W
8Ω/ bridged1×800W
70V/100V100W
Distortion(Typilcal)1KHz<0.1%
(SMPTE)
0.1%
Frequency response20Hz - 20 kHz±0.5dB
Input impedance20KHz(Balance) ,10KHz(Un-Balance)
Damping factor5Hz-1KHz>200
S/N ratio(a-w rms)≥100dB
Power supply 50~60 Hz110V/230VAC
INPUT SENSITIVITY
1V
SLEW RATE
20V/US

Protection:Soft start, DC, VHF,AC,Over heat,over load, Limiter,Short Circuit
dimension(W×H×D)
240×212×44mm
Net weight
2.1kg


Features
