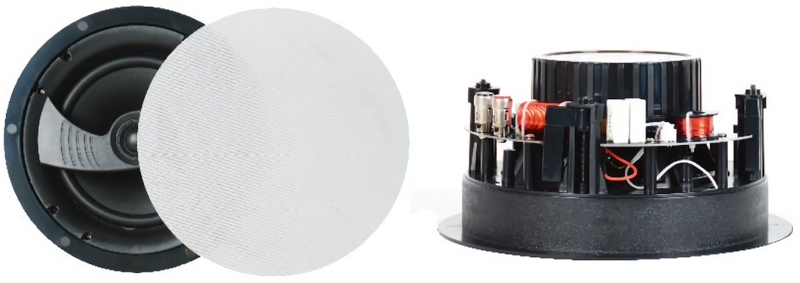

SAC178-5C SAC178-6C SAC178-8C
Specifications
| Technical data | SAC178-5C | SAC178-6C | SAC178-8C |
| Load rating | 30W | 40W | 50W |
| SPL(@1W/m) | 86dB | 88dB | 90dB |
| Frequency range | 100Hz-20KHz | 70Hz-20KHz | 50Hz-20KHz |
| Speaker | 5.25” | 6.5” | 8” |
| Tweeter | 1" silk dome | 1" silk dome | 1" silk dome |
| DimensionΦ, install depth | Φ 190x100mm | Φ 230x109mm | Φ 283x120mm |
| Install dimension 0 | Φ 164mm | Φ 200mm | Φ 259mm |
| Color | Black | Black | Black |
