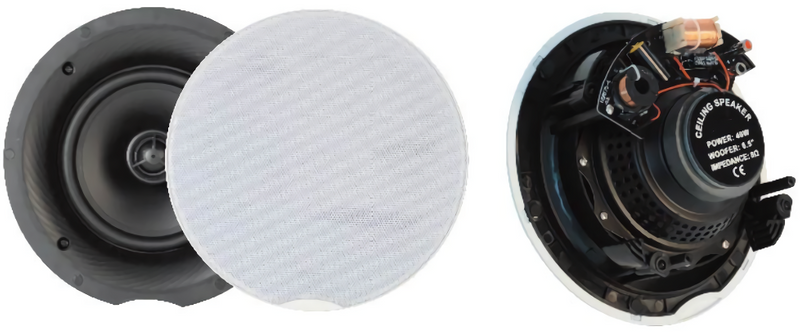

SAC175-5C SAC175-6C SAC175-8C
Specifications
| Technical data | SAC175-5C | SAC175-6C | SAC175-8C |
| Load rating | 30W | 40W | 50W |
| SPL(@1W/m) | 86dB | 88dB | 90dB |
| Frequency range | 100Hz-20KHz | 70Hz-20KHz | 50Hz-20KHz |
| Speaker | 5.25” | 6.5” | 8” |
| Tweeter | 1" silk dome | 1" silk dome | 1" silk dome |
| DimensionΦ, install depth | Φ 200x77mm | Φ 242x100mm | Φ 272x118mm |
| Install dimension Φ | Φ 180mm | Φ 202mm | Φ 246mm |
| Color | Black | Black | Black |
