SA-45P/60P/120P(Z)(ZV) small Public Address Amplifier with MP3

Share to:

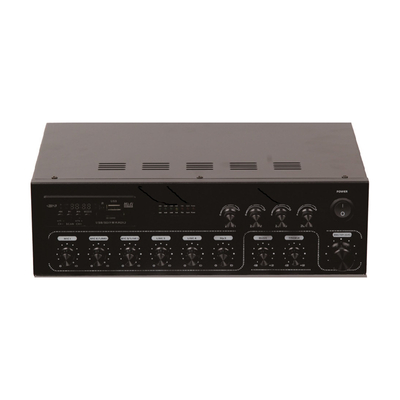

SA-45P/60P/120P(Z)(ZV) small Public Address Amplifier with MP3

SA-45P/60P/120P(Z)(ZV)
● 1 Mic(XLR) balanced input with Priorty function(switch) and Phantom power(switch)
● 2 Mic/Line(6.35mm TS) unbalanced inputs with selectors
● 2 Line inputs and 1 Line output with stereo RCA connectors
● USB/SD player with bluetooth,FM Radio and Recorder
● Protection: turn on delay, overload, short circuit, limit
● (Z) Series include 4 Zone outputs(100v) with switchs
● (ZV) Series include 4 Zone outputs(0-100v) with separate volume controls
● Output type: 4Ω, 8Ω, 16Ω, 70V, 100V
● Rated power output: 45W(SA-45P)/60W(SA-60P)/120W(SA-120P) with separate volume control
● Power supply: AC115/230V50Hz, DC12V/24V

Availability:

Quantity:



Inquire Add to Basket

Model:
SA-45P/60P/120P(Z)(ZV)
Code:
8518400090

Specifications
Product Description

Specifications

	SA-45P	SA-60P	SA-120P	SA-45P(Z)	SA-60P(Z)	SA-120P(Z)	SA-45P(ZV)	SA-60P(ZV)	SA-120P(ZV)
Rating power:	45W	60W	120W	45W	60W	120W	45W	60W	120W
Output tape:	100V,70V,4Ω,8Ω,16Ω
Microphone in:	10mV, 600 ohm
Aux in:	50 Hz - 16 kHz
Frequency response:	300mV, 10k ohm
Distortion:	<0.5 % (1 kHz)
Signal to Noise Ratio:	Mic: 115dB, Aux: 85dB
Dimension:	302 x 220 x 93mm(W x D x H)
4 ZONE OUTPUTS 100V	NA	NA	NA	YES	YES	YES	YES	YES	YES
Separate Volume control for Zone	NA	NA	NA	NA	NA	NA	YES	YES	YES
Antenna	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional

Features

SA-45P/60P/120P(Z)(ZV)

● 1 Mic(XLR) balanced input with Priorty function(switch) and Phantom power(switch)

● 2 Mic/Line(6.35mm TS) unbalanced inputs with selectors

● 2 Line inputs and 1 Line output with stereo RCA connectors

● USB/SD player with bluetooth,FM Radio and Recorder

● Protection: turn on delay, overload, short circuit, limit

● (Z) Series include 4 Zone outputs(100v) with switchs

● (ZV) Series include 4 Zone outputs(0-100v) with separate volume controls

● Output type: 4Ω, 8Ω, 16Ω, 70V, 100V

● Rated power output: 45W(SA-45P)/60W(SA-60P)/120W(SA-120P) with separate volume control

● Power supply: AC115/230V50Hz, DC12V/24V
