| Quantity: | |
|---|---|

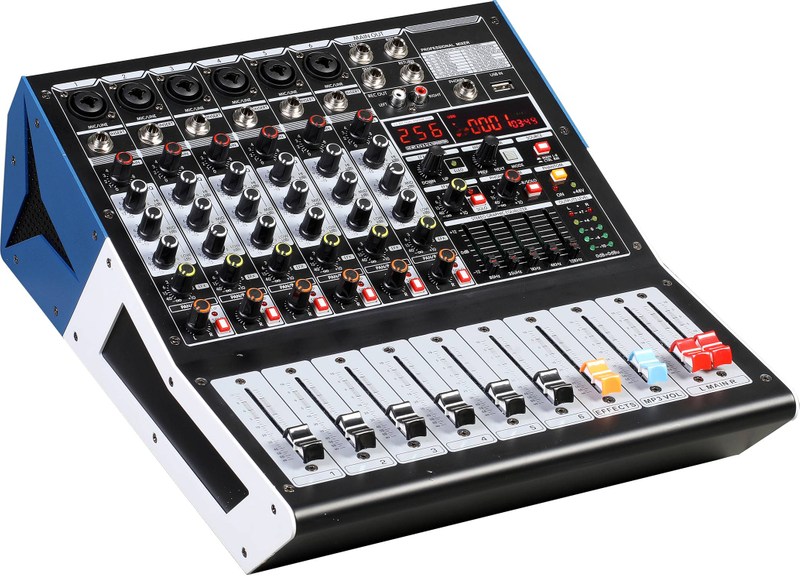

PMN-4 PMN-6 PMN-8
| Technical Specification: | |||
| Model number | PMN-4 | PMN-6 | PMN-8 |
| Channel MIC/LINE: | 4 | 6 | 8 |
| Main BUS: | 1 Stereo | ||
| EFFECTS | 256 DSP | ||
| Channel EQ: | 3 Band | ||
| EQ(MIAN): | 5 BAND | ||
| Total Harmonic Distortion: | ≤0.05% | ||
| Frequency Response: | 18Hz~18KHz | ||
| S/N Ratio: | ≥80dB | ||
| Max Outputs: | 4V Max | ||
| • Input Sensitivity: | Mic-60dB | ||
| Line-50dB | |||
| • Input EQ: | HI±15dB/12KHz | ||
| MID±15dB/2.5KHz | |||
| LOW±15dB/80Hz | |||
| • Output Power: | 4Ω 2x250W | ||
| Technical Specification: | |||
| Model number | PMN-4 | PMN-6 | PMN-8 |
| Channel MIC/LINE: | 4 | 6 | 8 |
| Main BUS: | 1 Stereo | ||
| EFFECTS | 256 DSP | ||
| Channel EQ: | 3 Band | ||
| EQ(MIAN): | 5 BAND | ||
| Total Harmonic Distortion: | ≤0.05% | ||
| Frequency Response: | 18Hz~18KHz | ||
| S/N Ratio: | ≥80dB | ||
| Max Outputs: | 4V Max | ||
| • Input Sensitivity: | Mic-60dB | ||
| Line-50dB | |||
| • Input EQ: | HI±15dB/12KHz | ||
| MID±15dB/2.5KHz | |||
| LOW±15dB/80Hz | |||
| • Output Power: | 4Ω 2x250W | ||
