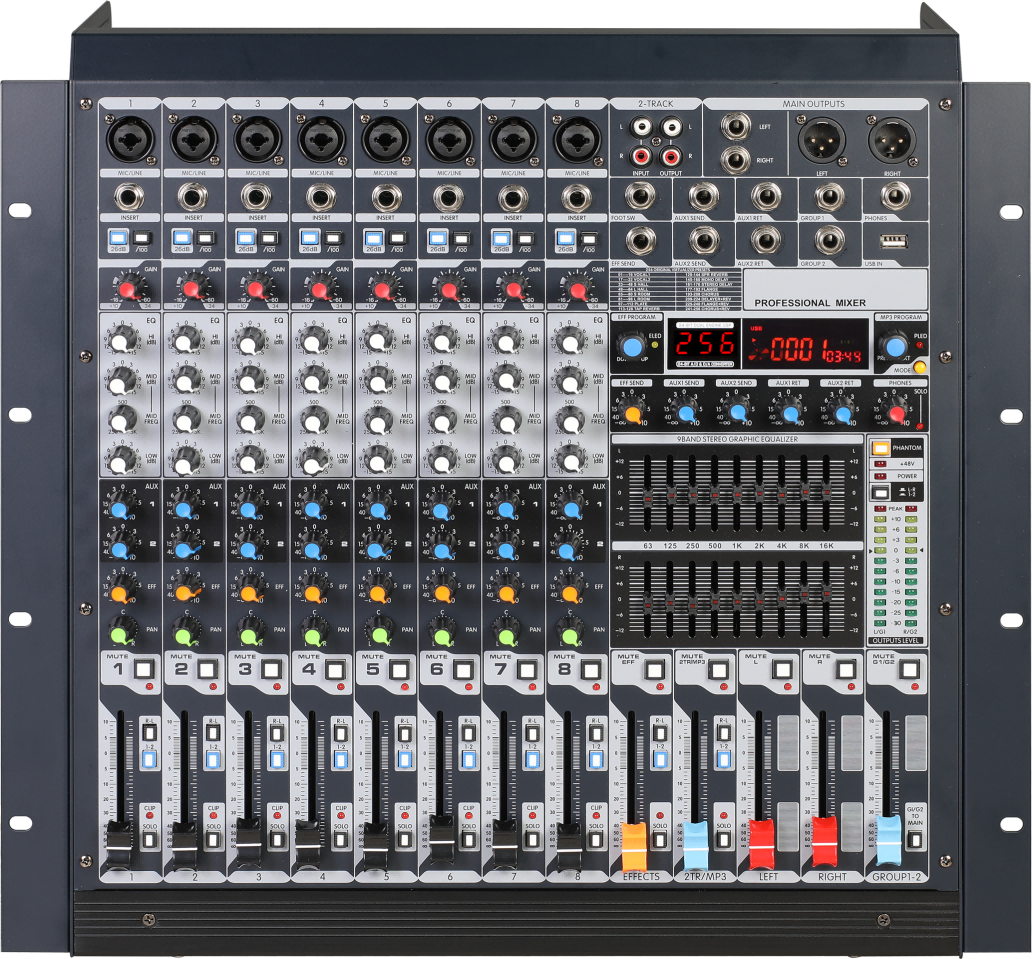

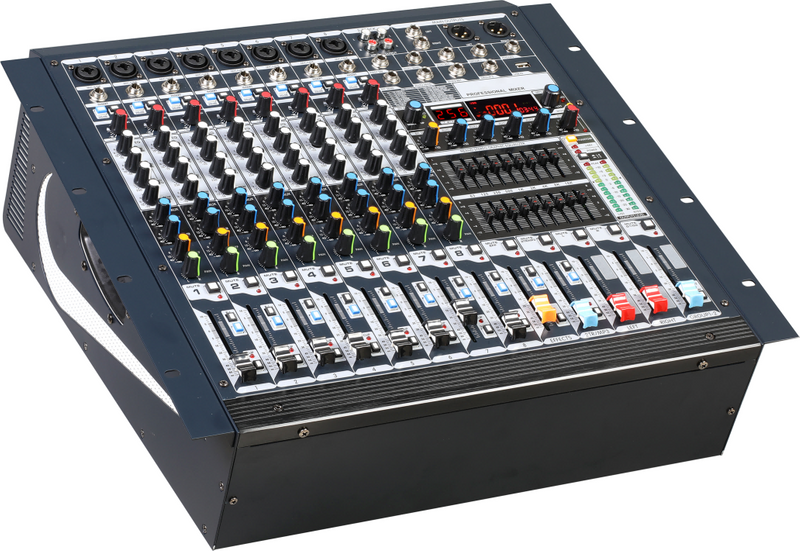

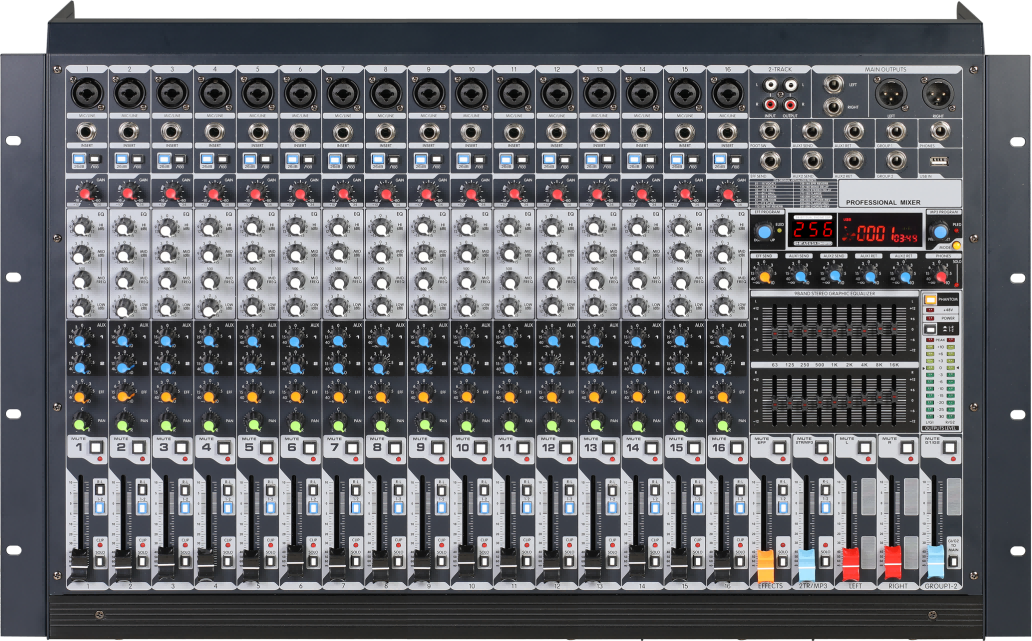

PMI-8 PMI-12 PMI-16 Powered Mixers 19" Rack

Main Fuction:
•Two Group AUX output and One Group return.
•With 256 DSP Digital effects
•Channel EQ:3 BAND GRAPHIC
•EQ(MIAN):Dual 9 band
•It is independent listen each channel Recording and headphone listen output.
•High quality With MP3 player.
•+48V Phantom power.
Availability:
Quantity:
  • PMI-8 PMI-12 PMI-16
  • 8543709990
Technical Specification:
Model numberPMI-8PMI-12PMI-16
Channel MIC/LINE:81216
Main BUS:1 Stereo
EFFECTS256 DSP
Channel EQ:3 Band
EQ(MIAN):Dual 9 BAND
Total Harmonic Distortion:≤0.05%
Frequency Response:18Hz~18KHz
S/N Ratio:≥80dB
Max Outputs:4V Max
• Input Sensitivity:Mic-60dB

Line-50dB
• Input EQ:HI±15dB/12KHz

MID±15dB/2.5KHz

LOW±15dB/80Hz
• Output Power:4Ω 2x350W or 4Ω 2X650W
