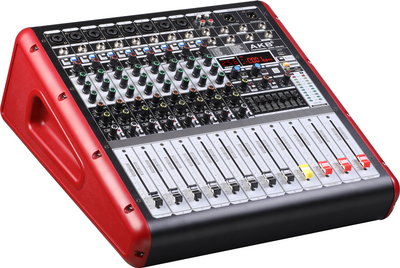

PMH-8 PMH-12 PMH-16
| Technical Specification: | |||
| Model number | PMH-8 | PMH-12 | PMH-16 |
| Channel MIC/LINE: | 8 | 12 | 16 |
| Main BUS: | 1 Stereo | ||
| EFFECTS | 256 DSP | ||
| Channel EQ: | 3 Band | ||
| EQ(MIAN): | Daul 7 BAND | ||
| Total Harmonic Distortion: | ≤0.05% | ||
| Frequency Response: | 18Hz~18KHz | ||
| S/N Ratio: | ≥80dB | ||
| Max Outputs: | 4V Max | ||
| • Input Sensitivity: | Mic-60dB | ||
| Line-50dB | |||
| • Input EQ: | HI±15dB/12KHz | ||
| MID±15dB/2.5KHz | |||
| LOW±15dB/80Hz | |||
| • Output Power: | 4Ω 2x350W | ||
| Technical Specification: | |||
| Model number | PMH-8 | PMH-12 | PMH-16 |
| Channel MIC/LINE: | 8 | 12 | 16 |
| Main BUS: | 1 Stereo | ||
| EFFECTS | 256 DSP | ||
| Channel EQ: | 3 Band | ||
| EQ(MIAN): | Daul 7 BAND | ||
| Total Harmonic Distortion: | ≤0.05% | ||
| Frequency Response: | 18Hz~18KHz | ||
| S/N Ratio: | ≥80dB | ||
| Max Outputs: | 4V Max | ||
| • Input Sensitivity: | Mic-60dB | ||
| Line-50dB | |||
| • Input EQ: | HI±15dB/12KHz | ||
| MID±15dB/2.5KHz | |||
| LOW±15dB/80Hz | |||
| • Output Power: | 4Ω 2x350W | ||
