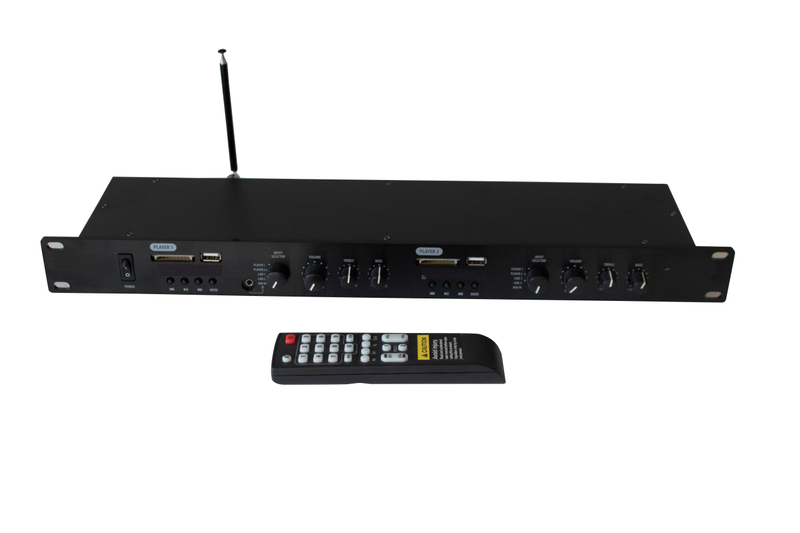

MPA2 Mixing preamplifier

Introduction:

MPA2 is a double media player for two zone audio installations. It features compressed audio playback, Bluetooth, FM radio and two zone paging capabilities with the addition of microphone desk stand. It is a flexible media player for places that constantly use multiple audio sources and need to switch them easily between two zones.
Availability:
Quantity:
  • MPA2

Fetures



• Compressed audio playback

• Supports up to 32GB USB flash and SD cards

• 2 Media players with SD/USB reader, FM radio and Bluetooth audio interface

• IR remote control

• Two-zone paging with the addition of microphone desk

• 2 RCA stereo line inputs

• 3.5 mm plug AUX input

• Direct audio outputs from media players

• Balanced stereo Phoenix outputs

• Stereo RCA AUX input


Specifications

                                      MPA2
Power consumption10W
Power supply115 Vor230V,50/60 Hz
Output levelMain:6dBu
Link:0dBu
Microphone inputSensitivity: 56 dBu, impedance: 600 O
Line inputSensitivity: 0 dBu, impedance: 4,7 kQ
Aux inputSensitivity: 0 dBu, impedance: 4,7 kQ,
Phantom power+48 V
Media playerRadio station memory: 30 stations
Max. USB flash or SD card size: 32 GB
AntennasFM antenna: monopole BNC connector,
Bluetooth antenna: internal, working distance > 10 m
Frequency response20 Hz-20 kHz
THD0.001
Tone controlBass: 100 Hz±12dB
Treble: 10 kHz ±12 dB
Remote controlIR remote
Dimensions483 mm x 103 mm x 44 mm
Weight1.7 kg
