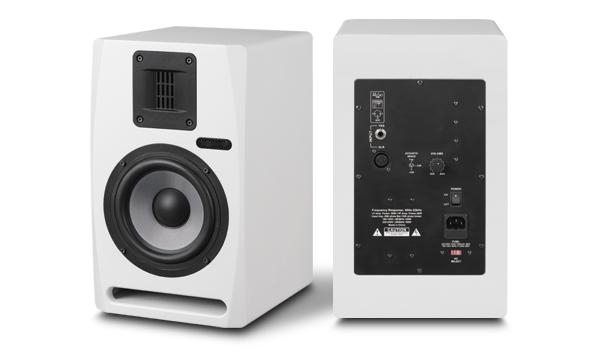

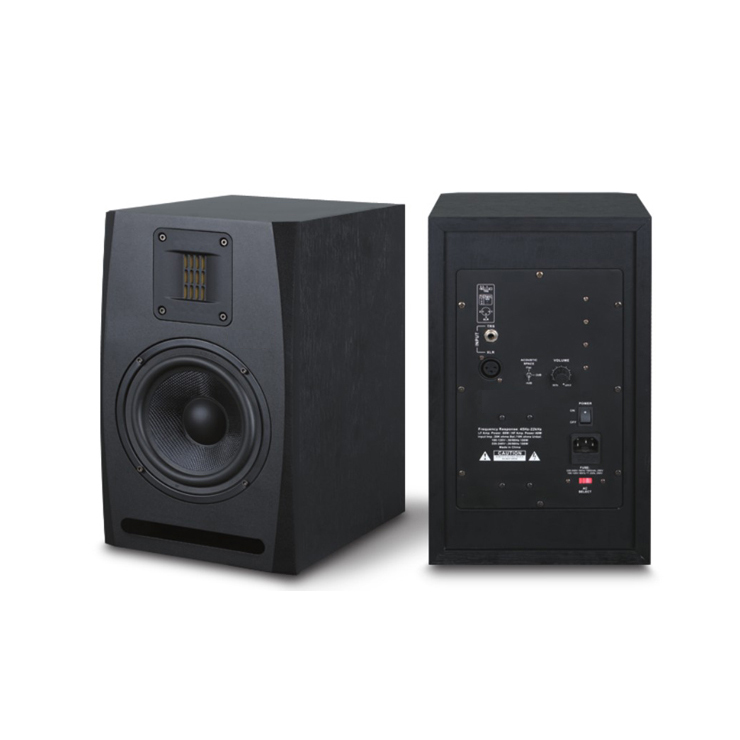

MD-5 MD-6 MD-8 Studio Monitor Speaker

MD Series Nearfield Studio Monitor

MD Series is one of our best selling nearfield monitor.It is one of the most balanced and versatile speakers currently on the market.The X-ART tweeter produces detailed,uncompressed highs and upper mids with out being tiring over long listening periods.Despite its compact housing,the bass response is powerful and precise.
Availability:
Quantity:
  • MD-5 MD-6 MD-8

Professional Monitoring for any Studio


The MD Series studio monitor provid accurate sound and dynamic acoustic control. It equipped with a 5"/6"/8" woven Kevlar low-frequency Woofer and 5.5" X-ART tweeter. The ME Series provid a flat frequency response, enhanced stereo imaging and increased clarity. 80W Class AB bi-amplifier provide high power with less noise. With the MD Series, your music is ready for any listening environment.


Sweeter Sweet Spot


The tweeter's waveguide has been enhanced,it provide an expansive sweet spot and superior stereo imaging. A wider mix position gives you professional monitoring for any caliber studio.


Acoustic Control


Mixing doesn't occur in a vacuum. Your listening environment influences your mixing and the sound of your music ultimately. The MD Series Acoustic Space Control include one series of calibration switches which helps you providing optimal acoustic conditions for tracking, mixing, and monitoring anywhere. Adapt the MD Series to any mixing environment(from bedrooms to basements or professional studios) without compromising frequency detail or stereo image.

Technical dataMD-5MD-6MD-8
ype5" 2-way near-field studio reference monitors6" 2-way near-field studio reference monitors8" 2-way near-field studio reference monitors
Amplifier Power70W130W130W
Output Power(LF)40W70W70W
Output Power(HF)30W60W60W
Woofer5-inch (127 mm) Kevlar curved cone with high temperature voicecoil and damped rubber surround. Magnetically shielded6-inch (153mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded.8-inch (203 mm) Kevlar curved cone with high temperature voicecoil and damped rubber surround, magnetically shieldedt
TweeterKorb Ø 145 mm (5.5")/Schwingspule Ø 32 mm (1.5")
Frequency Response(-3db)56Hz-45KHz45Hz-45KHz38Hz-45KHz
Maximum SPL(@1W/m)100dB
Crossover Frequency2.8Khz2.5Khz2.2Khz
Number of Amplifier2 CH
Input Sensitivity85mV(90dBA)
High-shelf filer(-5db±3db)>3Khz
Low-shelf filer(-5db±3db)80Hz
Input Connectors1xXLR balanced connector
1xTRS balanced/unbalanced connector
Input Impedance20 KΩ balanced, 10 KΩ unbalanced
Output70VA
Power Supply115-230V/50-60Hz
CabinetVinyl laminated, high acoustic efficiency MDF
Dimension175x200x338mm220x260x370mm250x300x410mm
Weight6kg8.5kg13kg
ColorBlack or White
