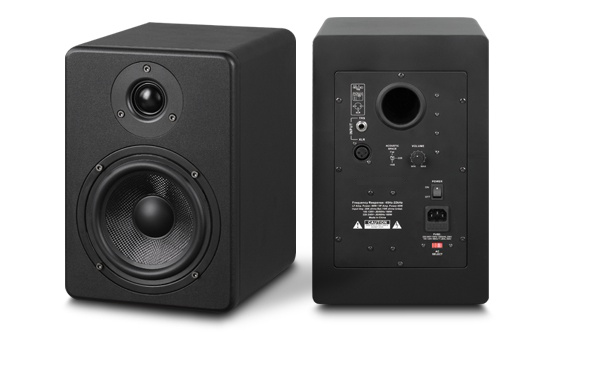

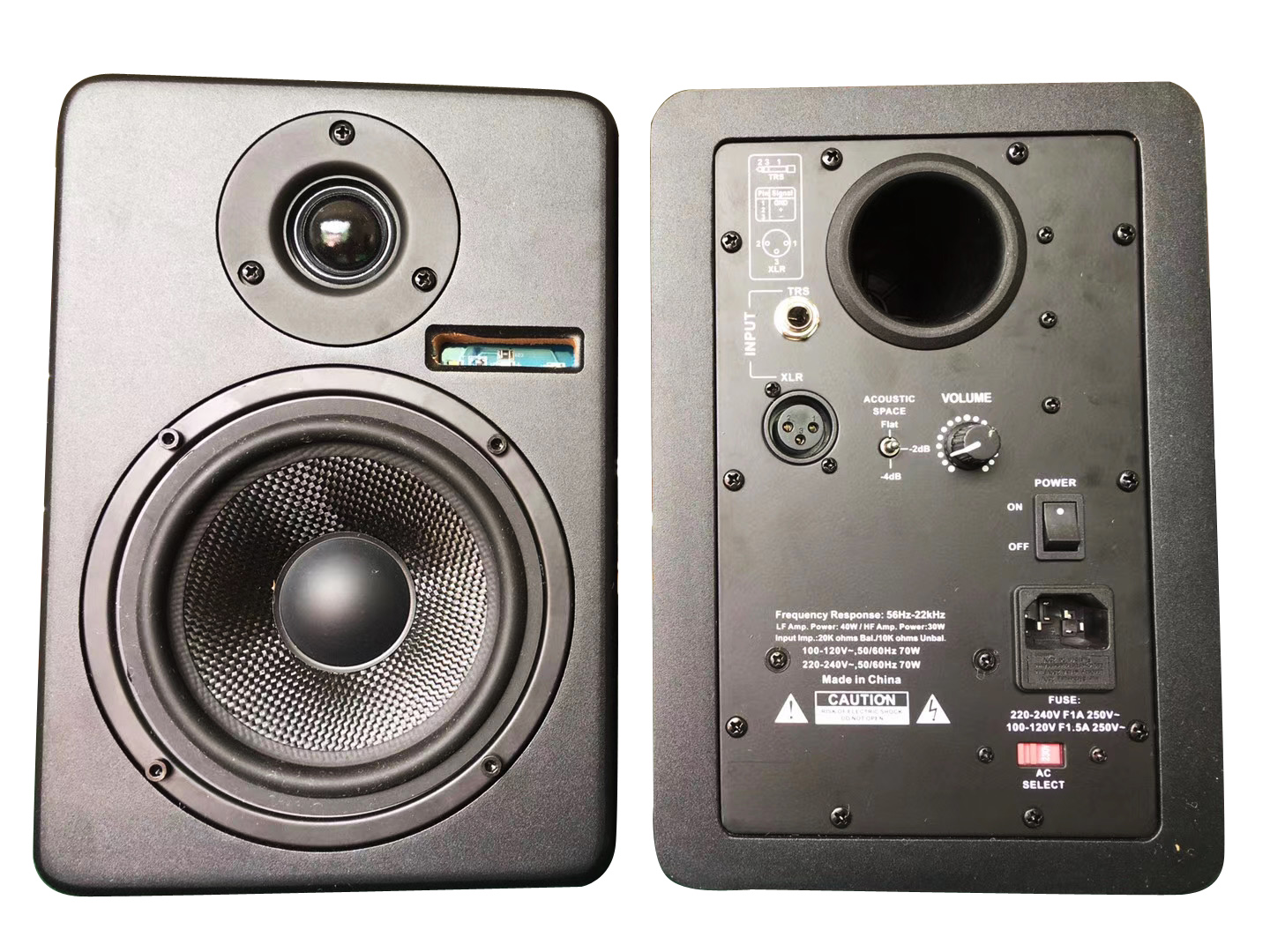

MC-5 MC-6 MC-8 Studio Monitor Speaker

MC Series Studio Monitor

In order to dampen resonance peaks at higher frequence,conventional dome tweeters are injected with fluid to raise their mass, sacrificing transient response time.By contrast,the custom-designed AMT tweeter uses an incredibly thin,folded kapton membrane(<0.01mm) with an inlayed aluminum circuit functioning as the voice coil,allowing the tweeter to move at the same instant as the electric current.The resulting reactive response time provides marked clarity and superior transient reproduction.
Availability:
Quantity:
  • MC-5 MC-6 MC-8

Professional Monitoring for any Studio


The MC Series studio monitor provid accurate sound and dynamic acoustic control. It equipped with a 5"/6"/8" woven Kevlar low-frequency Woofer and 1.25" natural silk dome tweeter. The MC Series provid a flat frequency response, enhanced stereo imaging and increased clarity. 80W Class AB bi-amplifier provide high power with less noise. With the MC Series, your music is ready for any listening environment.


Sweeter Sweet Spot


The tweeter's waveguide has been enhanced,it provide an expansive sweet spot and superior stereo imaging. A wider mix position gives you professional monitoring for any caliber studio.


Acoustic Control


Mixing doesn't occur in a vacuum. Your listening environment influences your mixing and the sound of your music ultimately. The MC Series Acoustic Space Control include one series of calibration switches which helps you providing optimal acoustic conditions for tracking, mixing, and monitoring anywhere. Adapt the MC Series to any mixing environment(from bedrooms to basements or professional studios) without compromising frequency detail or stereo image.


Technical dataMC-5MC-6MC-8
Type5" 2-way near-field studio reference monitors6" 2-way near-field studio reference monitors8" 2-way near-field studio reference monitors
Amplifier Power70W130W130W
Out Power(LF)40W70W70W
Out Power(HF)30W60W60W
Woofer5-inch (127 mm) Kevlar curved cone with high temperature voicecoil and damped rubber surround. Magnetically shielded.6-inch (153mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded.8-inch (203 mm) Kevlar curved cone with high temperature voicecoil and damped rubber surround, magnetically shielded.
Tweeter1-inch (25 mm) magnetically shielded natural silk dome1.25-inch (32mm) magnetically shielded natural silk dome1.25-inch (32mm) magnetically shielded natural silk dome
Frequency Response(-3db)56Hz-22KHz45Hz-22KHz38Hz-22KHz
Maximum SPL(@1W/m)100dB
Crossover Frequency2.8Khz2.5Khz2.2Khz
Number of Amplifier2 CH
Input Sensitivity85mV(90dBA)
Input Connectors

1xXLR balanced connector

1xTRS balanced/unbalanced connector

Input Impedance20 KΩ balanced,10 KΩ unbalanced
Output70VA
Power Supply115-230V/50-60Hz
CabinetVinyl laminated, high acoustic efficiency MDF
Dimension176x200x250mm213x249x318mm254x305x381mm
Weight5kg7.5kg12kg
ColorBlack
