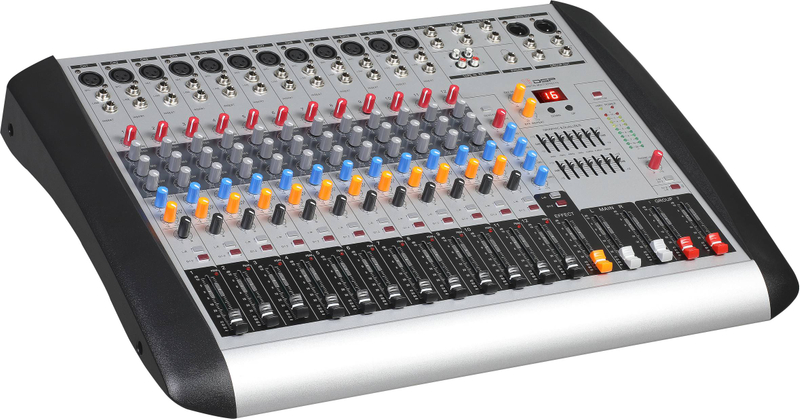

M-8R M-12R M-16R M-24R
8543709990
| Technical Specification: | ||||
| Model number | M-8R | M-12R | M-16R | M-24R |
| Channel MIC/LINE: | 8 | 12 | 16 | 24 |
| Main BUS: | 1 Stereo | |||
| Channel EQ: | 3 Band | |||
| EFFECTS: | 16 DSP | |||
| EQ(MAIN) | Dual 7 Band | |||
| Total Harmonic Distortion: | ≤0.05% | |||
| Frequency Response: | 18Hz~18KHz | |||
| S/N Ratio: | ≥80dB | |||
| Max Outputs: | 4V Max | |||
| • Input Sensitivity: | Mic-60dB | |||
| Line-50dB | ||||
| • Input EQ: | HI±15dB/12KHz | |||
| MID±15dB/2.5KHz | ||||
| LOW±15dB/80Hz | ||||
| Technical Specification: | ||||
| Model number | M-8R | M-12R | M-16R | M-24R |
| Channel MIC/LINE: | 8 | 12 | 16 | 24 |
| Main BUS: | 1 Stereo | |||
| Channel EQ: | 3 Band | |||
| EFFECTS: | 16 DSP | |||
| EQ(MAIN) | Dual 7 Band | |||
| Total Harmonic Distortion: | ≤0.05% | |||
| Frequency Response: | 18Hz~18KHz | |||
| S/N Ratio: | ≥80dB | |||
| Max Outputs: | 4V Max | |||
| • Input Sensitivity: | Mic-60dB | |||
| Line-50dB | ||||
| • Input EQ: | HI±15dB/12KHz | |||
| MID±15dB/2.5KHz | ||||
| LOW±15dB/80Hz | ||||
