| Quantity: | |
|---|---|

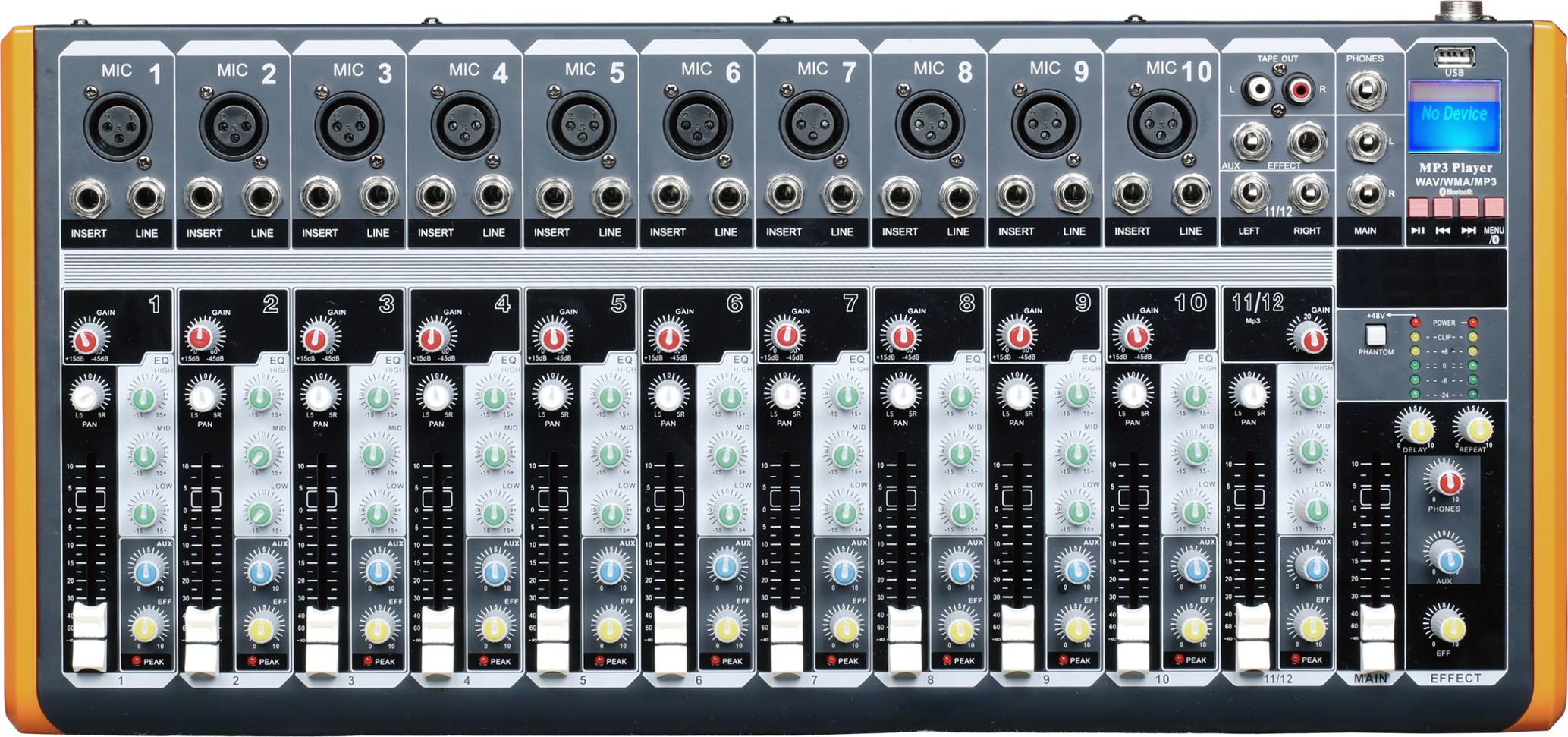

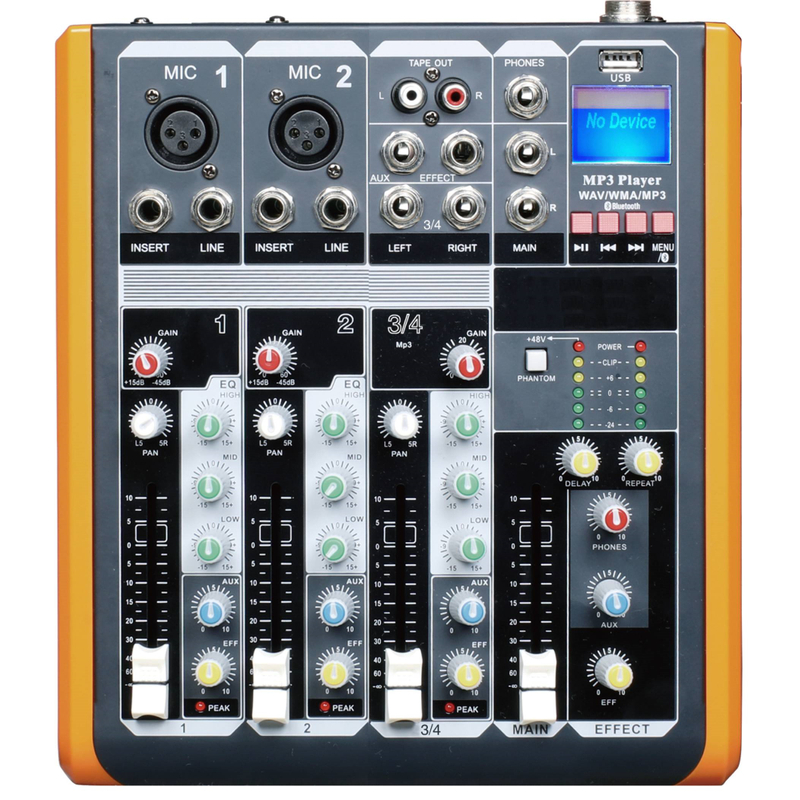

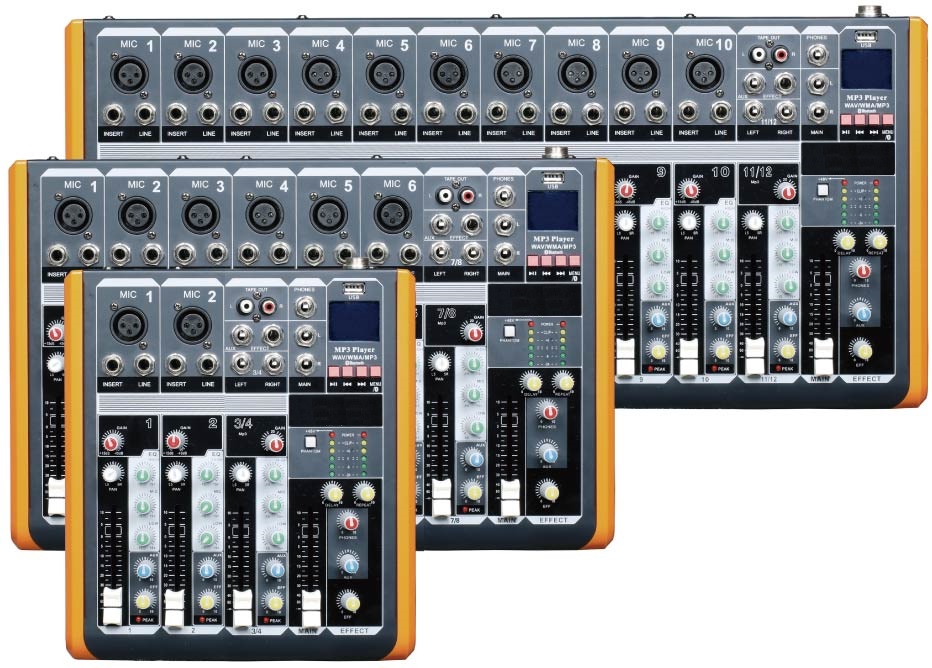

M-4B M-6B M-8B M-12B
8543709990
| Technical Specification: | ||||
| Model number | M-4B | M-6B | M-8B | M-12B |
| Channel MIC/LINE: | 4 | 6 | 8 | 12 |
| Main BUS: | 1 Stereo | |||
| Channel EQ: | 3 Band | |||
| Total Harmonic Distortion: | ≤0.05% | |||
| Frequency Response: | 18Hz~18KHz | |||
| S/N Ratio: | ≥80dB | |||
| Max Outputs: | 4V Max | |||
| • Input Sensitivity: | Mic-55dB | |||
| Line-34dB | ||||
| • Input EQ: | HI±15dB/12KHz | |||
| MID±15dB/2.5KHz | ||||
| LOW±15dB/80Hz | ||||
| Technical Specification: | ||||
| Model number | M-4B | M-6B | M-8B | M-12B |
| Channel MIC/LINE: | 4 | 6 | 8 | 12 |
| Main BUS: | 1 Stereo | |||
| Channel EQ: | 3 Band | |||
| Total Harmonic Distortion: | ≤0.05% | |||
| Frequency Response: | 18Hz~18KHz | |||
| S/N Ratio: | ≥80dB | |||
| Max Outputs: | 4V Max | |||
| • Input Sensitivity: | Mic-55dB | |||
| Line-34dB | ||||
| • Input EQ: | HI±15dB/12KHz | |||
| MID±15dB/2.5KHz | ||||
| LOW±15dB/80Hz | ||||
