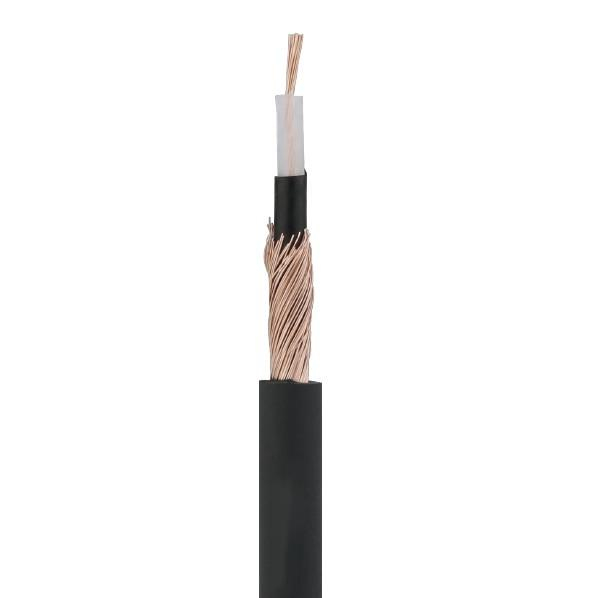

Instrument Cable - ICB100 ICB100S

The ICB100/ICB100S instrument cable is a high performance cable with NON-noise. long unbalanced leads for
equipment. All the cord has double protector PVC jacket. The two ways
shielding textile style and spiral style can be chosen. The cable consists of a flexible PVC jacket and Polypropylene silk Jacket which follows ROHS requirement, OFC copper and is easy to handle. The diameter of this cable is O.D:6/6.5mm. There are some different colors you can select. This cable can be used for all audio equipment working and connecting.
Availability:
Quantity:
Inquire Add to Basket

  • ICB100 ICB100S

Features

  • Professional non-noise instrumental music cables

  • Fine stranded wire for high-quality signal transmission

  • Very robust,with thick soft PVC jacket

  • Wonderful shielding 85% provided by dense copper spiral shielding and semiconductor shieling

  • High flexible,well-suited for use with cable drums


Specification

Cable modelICB100ICB100S
Inner conductorΦ0.12 BC*20Φ0.12 BC*20
Inner conductor section0.23 mm²0.23 mm²
conductor IsolationHDPE Φ1.4HDPE Φ1.4
Isolation colourWhiteWhite
Shielding 1Conductor PVCConductor PVC
Shielding 2Φ0.10Cu*64 spiralΦ0.10Cu*64 spiral
Outer jacketFlexible PVCPVC+PP YARN braid
Outer jacket colour8 colors are optional8 colors are optional
Outer dimensionsΦ6.0 mmΦ6.5 mm
Temperature rangemin. -20℃min. -20℃
Temperature rangemax. 70℃max. 70℃
Packaging100 m roll100 m roll
Lead resistance - 100 meter≤9.1 Ω≤9.1 Ω
Cable crosstalk - 100 meterMin 73.3dBMin 73.3dB
