| Quantity: | |
|---|---|
IM002
8518100090

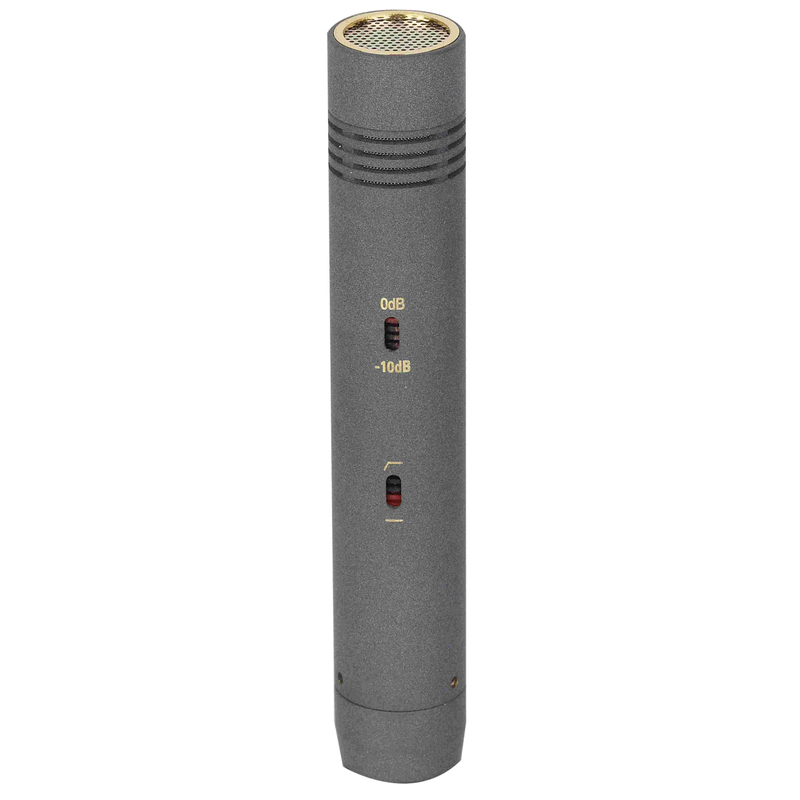

| Model No. | IM002 |
| Element: | Pressure Gradient Transducer |
| Polar Pattern: | Uni-directional |
| Frequency Response: | 30Hz-18KHz |
| Sensitivity (0dB=1V/Pa @1KHz): | -38dB±2dB |
| Output Impedance: | 100Ω±30%(@1KHz) |
| Self Noise: | 16dB A |
| Max. Input SPL: | 130dB (@1kHz≤1%T.H.D) |
| S/N Ratio: | 78dB |
| Low Frequency Attenuation: | 100Hz/oct 12dB |
| Power Requirement: | 48v Phantom Power |
| Model No. | IM002 |
| Element: | Pressure Gradient Transducer |
| Polar Pattern: | Uni-directional |
| Frequency Response: | 30Hz-18KHz |
| Sensitivity (0dB=1V/Pa @1KHz): | -38dB±2dB |
| Output Impedance: | 100Ω±30%(@1KHz) |
| Self Noise: | 16dB A |
| Max. Input SPL: | 130dB (@1kHz≤1%T.H.D) |
| S/N Ratio: | 78dB |
| Low Frequency Attenuation: | 100Hz/oct 12dB |
| Power Requirement: | 48v Phantom Power |
