IM001U IM001B IM001O Professional Instrument Microphone

IM001U/IM001B/IM001O

IM001 Series instrument condenser mic has a beautiful appearance. It utilises φ16 high quality headgrille and exact,electric circuit of the transformer output. With the characteristics of high sensitivity and low noise.
IM001 Series can be widely used to pickup the sound of orchestra instruments, piano and other instruments.

IM001U:Uni-directional
IM001B:Bi-directional
IM001O:Omni-directional
Availability:
Quantity:
Inquire Add to Basket

  • IM001U IM001B IM001O

  • 8518100090

Model No.IM001UIM001BIM001O
Element:φ16 condenser headgrille
Polar Pattern:Uni-directionalBi-directionalOmni-directional
Frequency Response:30Hz-18KHz
Sensitivity (0dB=1V/Pa @1KHz):-38dB±2dB
Output Impedance:100Ω±30%(@1KHz)
Self Noise:15dB A
Max. Input SPL:135dB (@1kHz≤1%T.H.D)
S/N Ratio:79dB
Phantom Power Requirement:9-52V Phantom Power

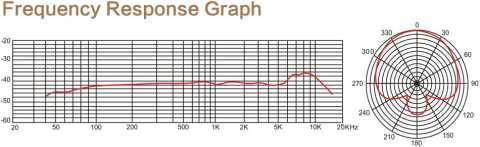

IM001 Frequency Response
