| Quantity: | |
|---|---|
HSUB-F8 HSUB-F10
8518220000
| MODEL NO | HSUB-F8 | HSUB-F10 |
| Driver | 8” WOOFER | 10” WOOFER |
| 4 Ohm RMS Power | 50W | 100W |
| Total Efficiency | >80% | |
| Frequency Response | 25Hz-150Hz | 25Hz-200Hz |
| Crossover Variable | 50Hz to 150Hz adjustable | 40Hz to 200Hz adjustable |
| Distortion | <1% | |
| Signal to Noise Ratio | ≥90dB | |
| Bass Boost (35Hz) | +6dB | |
| Input Sensitivity | 5mV | |
| Auto Power on Sensitivity | 115mV | |
| Temperature | 65 | |
| Hi Level Input Sensitivity | 1.2V | |
| Hi Level Output Sensitivity | 1.2V | |
| Standby function | Yes | |
| On/off automatic(stby) | Yes | |
| Power consumption stby | No | <0.5Watts |

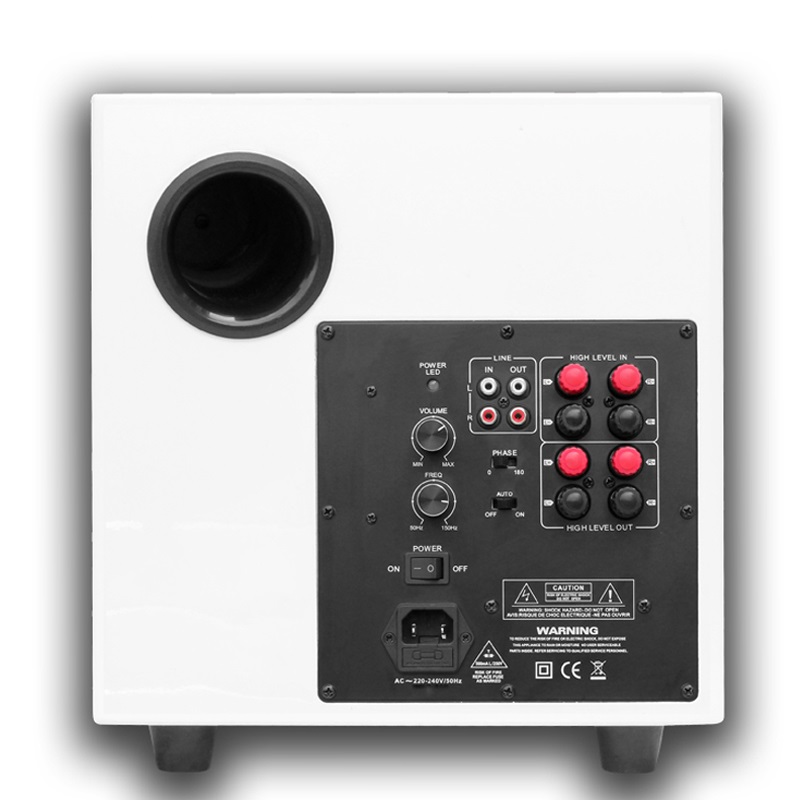

| Speaker input terminal | High level in | |
| Speaker outputs | High level out loop through | No |
| Subwoofer RCA line-in | Yes | |
| Volume control | Yes | |
| Phase Change | 0-180 degrees | |
| Input Power | AC115V & 230V | |
| Dimensions (W x D x H) | 300x315x300mm | 330x342x330mm |
| MODEL NO | HSUB-F8 | HSUB-F10 |
| Driver | 8” WOOFER | 10” WOOFER |
| 4 Ohm RMS Power | 50W | 100W |
| Total Efficiency | >80% | |
| Frequency Response | 25Hz-150Hz | 25Hz-200Hz |
| Crossover Variable | 50Hz to 150Hz adjustable | 40Hz to 200Hz adjustable |
| Distortion | <1% | |
| Signal to Noise Ratio | ≥90dB | |
| Bass Boost (35Hz) | +6dB | |
| Input Sensitivity | 5mV | |
| Auto Power on Sensitivity | 115mV | |
| Temperature | 65 | |
| Hi Level Input Sensitivity | 1.2V | |
| Hi Level Output Sensitivity | 1.2V | |
| Standby function | Yes | |
| On/off automatic(stby) | Yes | |
| Power consumption stby | No | <0.5Watts |
| Speaker input terminal | High level in | |
| Speaker outputs | High level out loop through | No |
| Subwoofer RCA line-in | Yes | |
| Volume control | Yes | |
| Phase Change | 0-180 degrees | |
| Input Power | AC115V & 230V | |
| Dimensions (W x D x H) | 300x315x300mm | 330x342x330mm |
