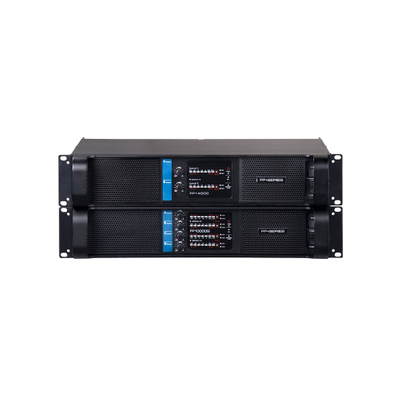

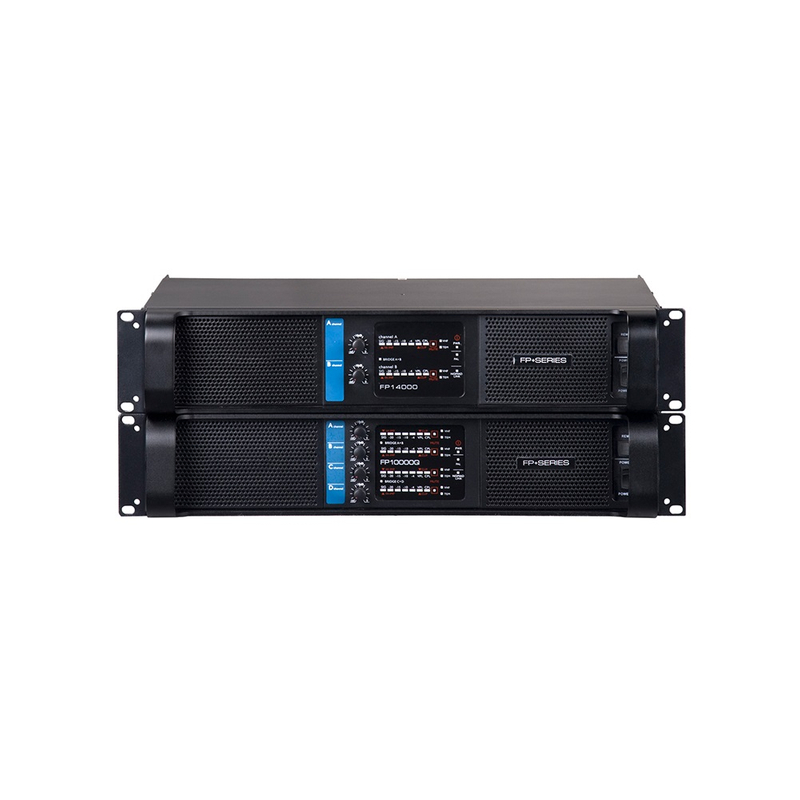

FP4000 FP7000 FP9000 FP14000 FP6000Q FP8000Q FP10000Q FP20000Q
8518400090
Specifications
| Model | FP4000 | FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q | FP20000Q | |
| Channel Number | 2CH | 2CH | 2CH | 2CH | 4CH | 4CH | 4CH | |
| Output power | 8Ω/ CH | 800W | 1450W | 1600W | 2350W | 625W | 1300w | 1800W |
| 4Ω/ CH | 1600W | 2800W | 3000W | 4400W | 1250W | 2100w | 3200W | |
| 2Ω/ CH | 2000W | 3500W | 4500W | 7000W | 1500W | 2500w | 5100W | |
| 8Ω Bridge/ CH | 3200W | 5600W | 6000W | 8800W | 2500W | 4200w | 6400W | |
| 4Ω Bridge/ CH | 4000W | 7000W | 9000W | 14000W | 3000W | 5000w | 9500W | |
| Distortion（Typilcal） | (8Ω full power 20HZ-20KHZ)THD+N | ＜0.1% | ||||||
| THD at 1khz and 1db below clipping | ＜0.05% | |||||||
| Frequency response | 20Hz - 35 kHz | |||||||
| Input impedance | 20Kohm(Balance) ，10Kohm(Un-Balance) | |||||||
| Damping factor | 100hz/Damping factor | ＞200:1 | ＞400:1 | ＞200:1 | ||||
| S/N ratio | (a-w rms) | ＞112DB | ||||||
| Gain selectable | 23db,26db.29db,32db,35db,38db,44db | |||||||
| Slew Rate | 30v/us | 35v/us | 40v/us | 45v/us | 30v/us | 30v/us | 30v/us | |
| Cross Talk | ＞85db | |||||||
| Bridge Mode | A+B,C+D or AB,CD bridge | |||||||
| Power supply | 50~60 Hz | 115V/230VAC | ||||||
| Dimension(W×H×D)mm | 483x89x398mm(2U) | |||||||
