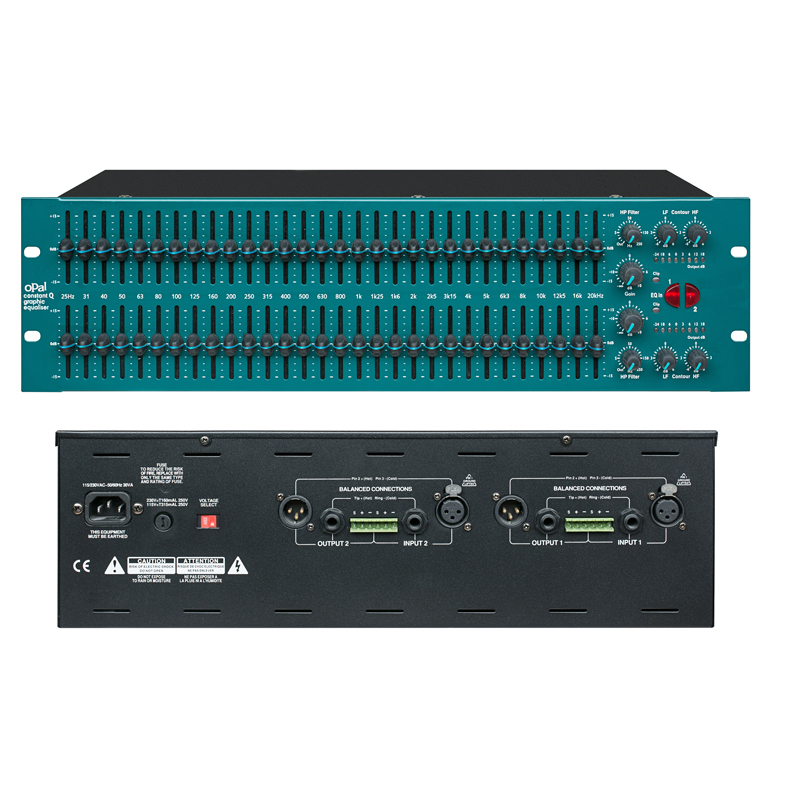

EQ966 Dual 31 Band Equalizers

Dual 31-Band electronic graphic equalizer
(with compressor and Type III Noise Reduction)
EQ966 include compression limiter and type III Dolby noise reduction function, help to further reduce the noise of the system,
making the system very quiet. Compression limiter function use the currently best limiter IC (THAT2181 and THAT2522) for production, with greater than 120dB dynamic range, less than 0.0025% distortion, totally can meet with the professional level compression limiter.
  • EQ966
  • 8543709990

Technical parameters

Q value of 4; constant gain /attenuation:15dB
Input impedance:10kΩ balanced
Output impedance: <50kΩ balanced
CMRR:Dual 15 band
Maximum input level:+12 dB/-12dB
Maximum output level: +20 dBu (balanced or unbalanced) 600Ω
Maximum output level indicator:-24dB-18dB
Fader input level control: + /-15dB
Gain control per channel: - ∞ - +10 dB
Each channel has a clipping indicator
High-pass filter: OUT-250 Hz
Low-frequency control: + / -6 dB 50 Hz 6 dB / octave
High-frequency control: + / -6 dB 14KHz 6 dB / octave
Total Harmonic Distortion: 0.005% @ 1kHz 20Hz-20kHz
SNR: > 90dB (ref.0.775Vrms)
Noise:-94dBu, 22Hz-22KHz
Crosstalk:>-80dB @ 1KHz
Distortion: <0.005% THD20Hz-20KHz
Impedance balanced 1/4 "inputs and XLR balanced input / output
Electronic switch: ln / Out and Filter (FET category)
Dynamic range :> 115dB
Frequency response: 20Hz to 20kHz, +0 /-1dB
Power110V / 230V AC, 50/60Hz, 30VA
Operating level:-10dBu to +4 dBu
Dimensions: 19 "x 5.25" x 7.1 "(483mm x 134mm x 180mm)
Weight: 3kg
