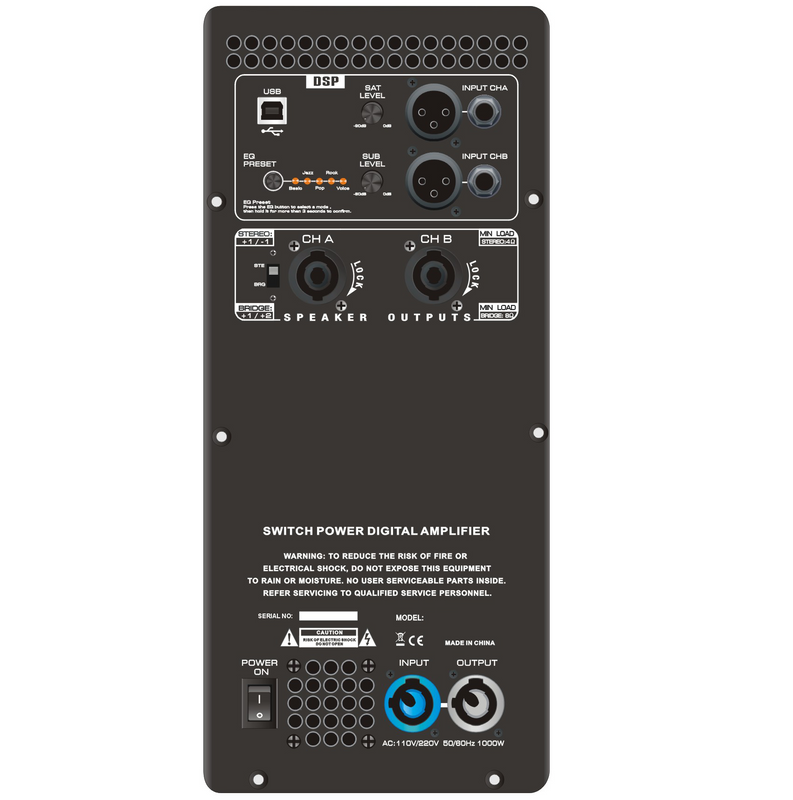

DSP3.6 3Channel Amplifier Module with DSP

DSP three-channel series active speaker amplifier use 2 in-3 out mode. It include Digital Signal Processor, use advanced digital frequency crossover. External 5 preset sound field mode(Can be reset to any other modes).Better sound quality, clearer, more sweet, more layering.
Availability:
Quantity:
  • DSP3.6
  • 8518400090
Model
DSP3.6
Rated power(TA 1KHz THD≤0.5%)SAT 8Ω2x250W
SAT 4Ω2x350W

SUB 8Ω1x600W
Distortion(Typilcal)1KHz<0.5%
Frequency response20Hz - 20 kHz±1.5dB
Input impedance20Khz(Balance) ,10Khz(Un-Balance)
Damping factor5hz-1khz>200
S/N ratio(a-w rms)100db
Power supply50~60 Hz115V/230VAC

Protection:DC,Over heat,over load, Short start,Short Circuit
Dimension(W×H×D)mm
145x330
