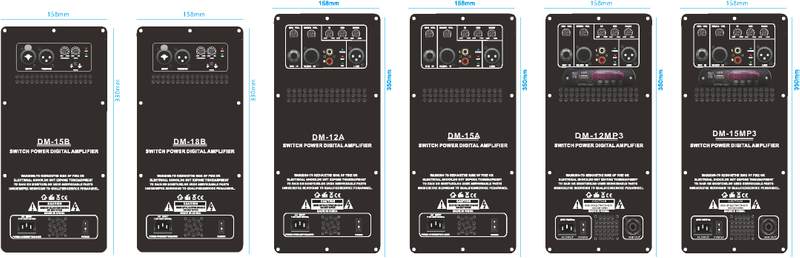

DM12A DM15A DM12A-MP3 DM15A-MP3 DM15B Amplifier Module

Class D switch power amplifier module(MONO)

This series active speaker amplifier is designed for 1.1 speaker system. It use PWN digital oscillator circuits for power supply, high percent conversion and powerful. Include RCA,JACK,XLR stereo input, 3 channel EQ(High, MID, BASS)and independent MIC input which is very convenient to use.
Availability:
Quantity:
  • DM12A DM15A DM12A-MP3 DM15A-MP3 DM15B
  • 8518400090
Model
DM-12ADM-15ADM-12MP3DM-15MP3DM-15B
Rated power(TA 1KHz THD≤0.5%)400W500W400W500W500W
550W700W550W700W700W
Distortion(Typilcal)1KHz<0.5%
Frequency response20Hz - 20 kHz±1.5dB
Input impedance20Kohm(Balance) ,10Kohm(Un-Balance)
Damping factor5hz-1khz>200
S/N ratio(a-w rms)100db
Power supply50~60 Hz115V/230VAC

Protection:DC,Over heat,over load, Short start,Short Circuit
Dimension(W×H×D)mm
158x330
