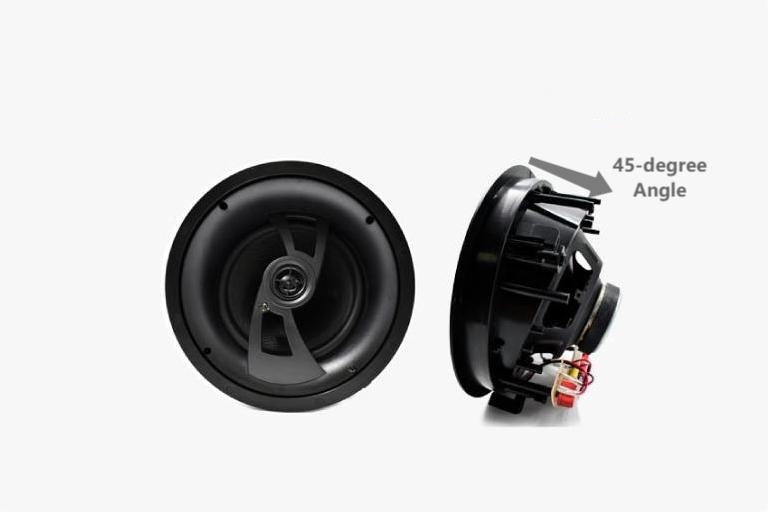

CS61D CS81D
Specification | CS61D | CS81D |
Woofer : LF Unit | 6.5″ inch x 1 | 8″ inch x 1 |
Material: Polypropylene Cone , Rubber Surround | ||
Tweeter : HF Driver | 1“ inch x 1 | |
Material: Silk soft dome | ||
Impedance(AC) : | 8Ω | |
Sensitivity( Output SPL) | 86±3dB | |
Frequency Range+/-3 (Freq.Range) | FO~20KHz±3dB | |
Power Handling RMS | 80W program ,40W(IEEE 219) | 100W program ,50W(IEEE 219) |
Termination : | Standard pressed connector | |
Taps(Transformer power) : | NA | |
Cut out diameter ( For Ceiling Speakers only) | 8.22" (209mm) | 10.11" (257mm) |
Attachment | Low-profile grille | |
Housing Material : | ABS | |
Dimension(H*W) | 145*240*240mm | 165*290*290mm |
Net Weight : | 1.81kg | 2.05kg |
Specification | CS61D | CS81D |
Woofer : LF Unit | 6.5″ inch x 1 | 8″ inch x 1 |
Material: Polypropylene Cone , Rubber Surround | ||
Tweeter : HF Driver | 1“ inch x 1 | |
Material: Silk soft dome | ||
Impedance(AC) : | 8Ω | |
Sensitivity( Output SPL) | 86±3dB | |
Frequency Range+/-3 (Freq.Range) | FO~20KHz±3dB | |
Power Handling RMS | 80W program ,40W(IEEE 219) | 100W program ,50W(IEEE 219) |
Termination : | Standard pressed connector | |
Taps(Transformer power) : | NA | |
Cut out diameter ( For Ceiling Speakers only) | 8.22" (209mm) | 10.11" (257mm) |
Attachment | Low-profile grille | |
Housing Material : | ABS | |
Dimension(H*W) | 145*240*240mm | 165*290*290mm |
Net Weight : | 1.81kg | 2.05kg |
Installation: Wall Mount
Attachment: Grille
Accessory: Cut out template
Weather Proof: N/A
Wireless Enable: N/A
PA Transformer: TBD
Multi Device Connections
Installation: Wall Mount
Attachment: Grille
Accessory: Cut out template
Weather Proof: N/A
Wireless Enable: N/A
PA Transformer: TBD
Multi Device Connections
