| Quantity: | |
|---|---|

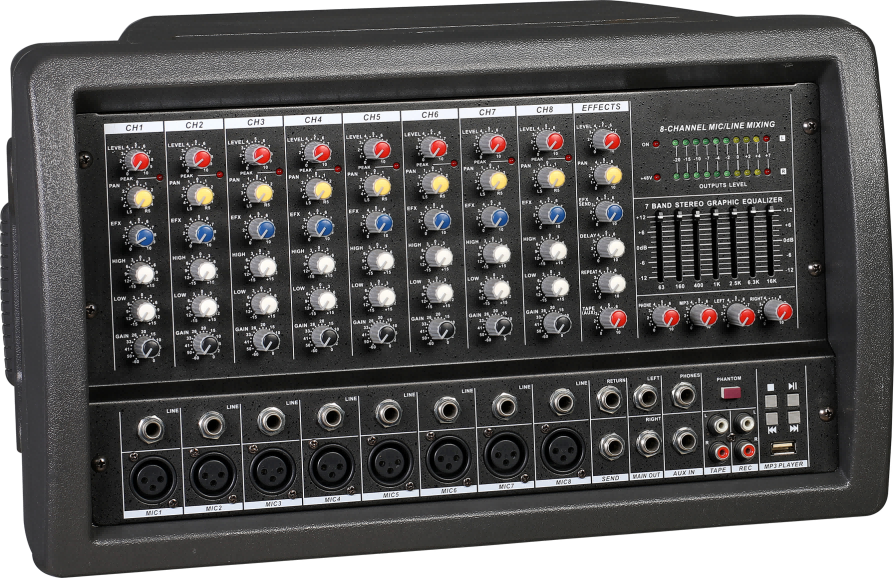

CPM-M8 CPM-M8DSP
| Technical Specification: | ||
| Model Number | CPM-M8 | CPM-M8DSP |
| Channel MIC/LINE: | 8 | 8 |
| Main BUS: | 1 Stereo | 1 Stereo |
| Channel EQ: | 3 Band | 3 Band |
| EFFECTS | NO | 16DSP |
| Total Harmonic Distortion: | ≤0.05% | ≤0.05% |
| Frequency Response: | 18Hz~18KHz | 18Hz~18KHz |
| S/N Ratio: | ≥80dB | ≥80dB |
| Max Outputs: | 4V Max | 4V Max |
| • Input Sensitivity: | Mic-60dB | Mic-60dB |
| Line-50dB | Line-50dB | |
| • Input EQ: | HI±15dB/12KHz | HI±15dB/12KHz |
| MID±15dB/2.5KHz | MID±15dB/2.5KHz | |
| LOW±15dB/80Hz | LOW±15dB/80Hz | |
| • Output Power: | 4Ω 2x250W | 4Ω 2x250W |
| Technical Specification: | ||
| Model Number | CPM-M8 | CPM-M8DSP |
| Channel MIC/LINE: | 8 | 8 |
| Main BUS: | 1 Stereo | 1 Stereo |
| Channel EQ: | 3 Band | 3 Band |
| EFFECTS | NO | 16DSP |
| Total Harmonic Distortion: | ≤0.05% | ≤0.05% |
| Frequency Response: | 18Hz~18KHz | 18Hz~18KHz |
| S/N Ratio: | ≥80dB | ≥80dB |
| Max Outputs: | 4V Max | 4V Max |
| • Input Sensitivity: | Mic-60dB | Mic-60dB |
| Line-50dB | Line-50dB | |
| • Input EQ: | HI±15dB/12KHz | HI±15dB/12KHz |
| MID±15dB/2.5KHz | MID±15dB/2.5KHz | |
| LOW±15dB/80Hz | LOW±15dB/80Hz | |
| • Output Power: | 4Ω 2x250W | 4Ω 2x250W |
