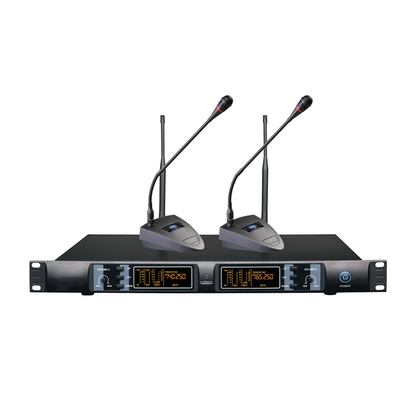

CM-2200
8518100090
System parameters:
| Frequency range: | 612.25-867MHz |
| Moudulation: | FM |
| Adjustable channels: | 1600(8 bands,each 200channels) |
| Channel space: | 250KHz |
| Oscillation mode: | PLL synthesized |
| Frequency stability: | ±10ppm |
| Dynamic range: | 100db |
| Audio bandwidth: | 60-1600Hz |
| S/N ratio: | ≥100dB |
| T.H.D at 1 kHz: | ≤0.5% |
| Operation distance: | 150(ideal conditions) |
| Working Environment temperature: | -10℃~+50℃ |
Receiver specfications:
| Receive mode: | Twice Mixer Superheterodunce Circuit |
| Intermediate frequency: | 110MHz,10.7MHz |
| Antenna access: | BNC/500 |
| Receiver sensitivity: | -95~-75DBm |
| Spurious suppression: | ≥-75Db |
| Max output level: | +10Db |
| Power supply: | DC12V/2A |
| Consume power: | ≤14W |
